Edelbrock Performer-Plus #2152 is designed for 400-425-455 Oldsmobile V8 engines and produce optimum torque from the low-end to the mid-range.

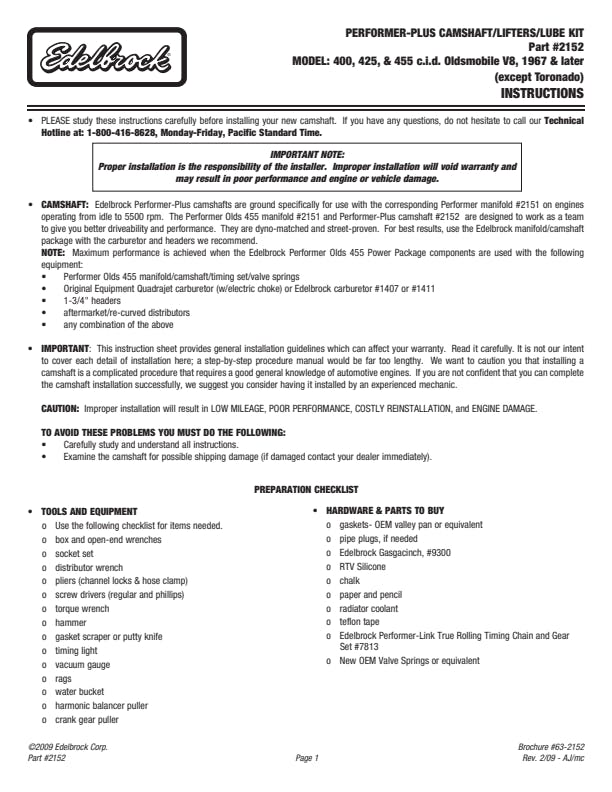

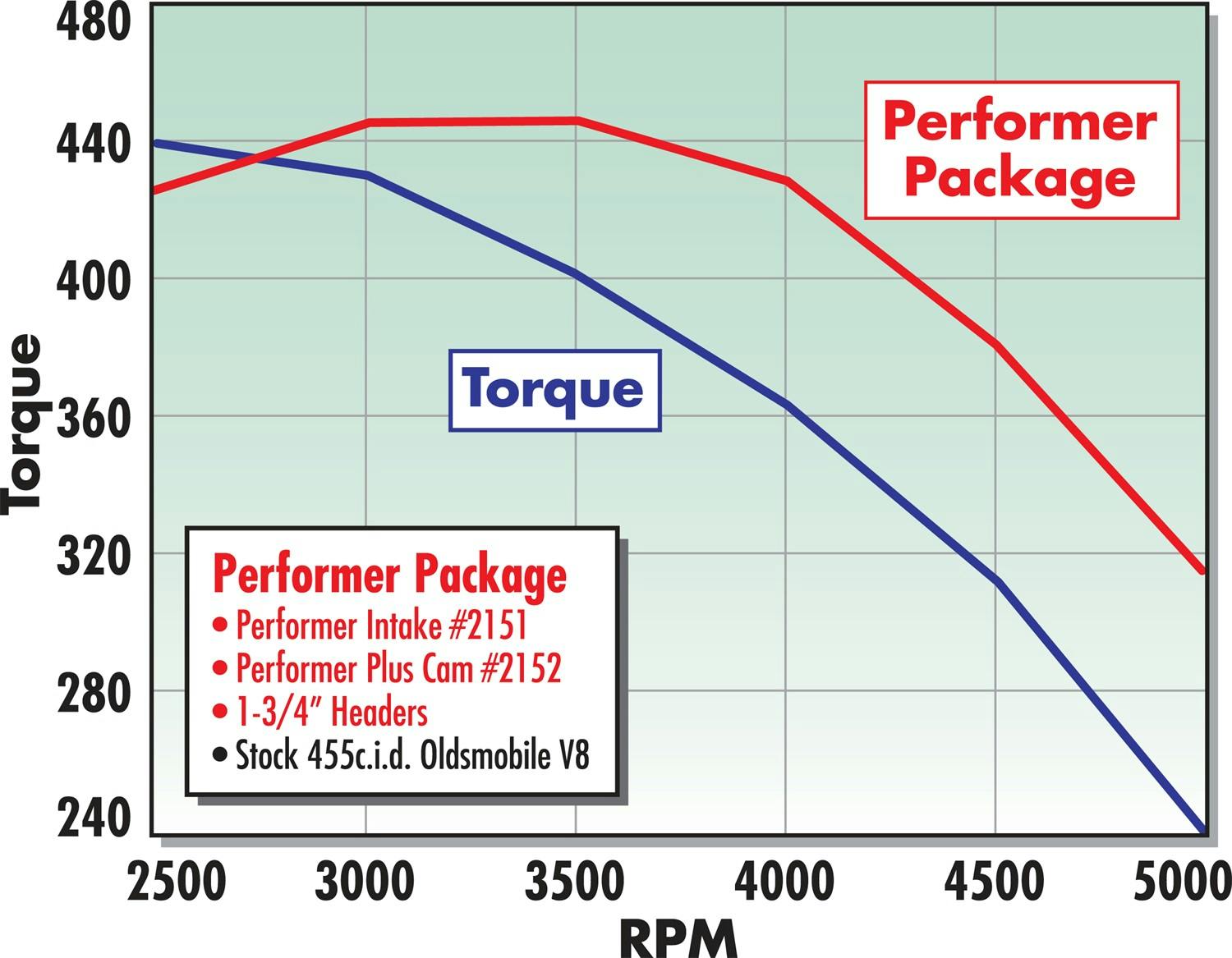

Edelbrock Performer-Plus Camshaft #2152 is designed for 400-425-455 Oldsmobile V8 engines and produce optimum torque from the low-end to the mid-range. Performer-Plus camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. The Performer-Plus #2152 is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 445 Ft Lbs of Torque when paired with Performer Olds 455 intake manifold #2151 and stock cylinder heads. Will not fit Toronados or 1966 and earlier. Fits 1967-84 400-425-455, 39 Degree bank angle engine. Camshaft specifications: - Intake duration: 214 Degrees - Exhaust duration: 224 Degrees - Intake lift: .472" - Exhaust lift: .496" - Lobe separation: 112 Degree - Intake Center Line: 107 Degree - Vacuum: 15"
Application Summary:
| Year |
Make/Model |
| 1973-1974 |
GMC Transmode |
| 1967-1971 |
Oldsmobile 442 |
| 1967-1974 |
Oldsmobile 98 |
| 1971-1974 |
Oldsmobile Custom Cruiser |
| 1967-1968 |
Oldsmobile Cutlass |
| 1970-1974 |
Oldsmobile Cutlass |
| 1971-1974 |
Oldsmobile Cutlass Supreme |
| 1967-1968 |
Oldsmobile Delmont 88 |
| 1967-1974 |
Oldsmobile Delta 88 |
| 1970 |
Oldsmobile F85 |
| 1972 |
Oldsmobile F85 |
| 1968-1974 |
Oldsmobile Vista Cruiser |
| Attributes |
| Advertised Exhaust Duration |
298, 298, 298 |
| Advertised Intake Duration |
288, 288, 288 |
| ASIN |
B000CN8XE0 |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Cam Type |
Cast |
| Computer Controlled Compatible |
No, No, No |
| Country of Origin (Primary) |
US |
| Emission Code |
Not in CA |
| Engine Make/Size |
Olds 400-455 |
| Exh. Duration @ .050 in. (Deg) |
224 |
| Exh. Duration Advertised (Deg) |
298 |
| Exhaust Duration at .050 inch Lift |
224 |
| Exhaust Valve Lift |
0.496, 0.496 |
| Exhaust Valve Lift (in.) |
0.496 |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708998175 |
| Hazardous Material Code |
N |
| Int. Duration @ .050 in. (Deg) |
214 |
| Int. Duration Advertised (Deg) |
288 |
| Intake Duration .050 Inch Lift |
224, 224, 224 |
| Intake Duration @ 0.050 in. |
214 Degree |
| Intake Duration Advertised |
288 |
| Intake Valve Lift |
0.472, 0.472 |
| Intake Valve Lift (in.) |
0.472 |
| Life Cycle Status Code |
Available to Order |
| Lifter Materials |
Hardened Steel |
| Lifter Type |
Hydraulic, Hydraulic |
| Lobe Separation |
112 |
| NAFTA Preference Criterion Code |
B |
| Potential Risk Chemical |
Chrome |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov., WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| RPM Range |
0-6750 |
| SDR Required Flag |
N |
| SDS Sheet Number |
NA |
| Usage |
Street/Performance |
| Warranty Time |
12 |
| GTIN |
00085347021529 |
